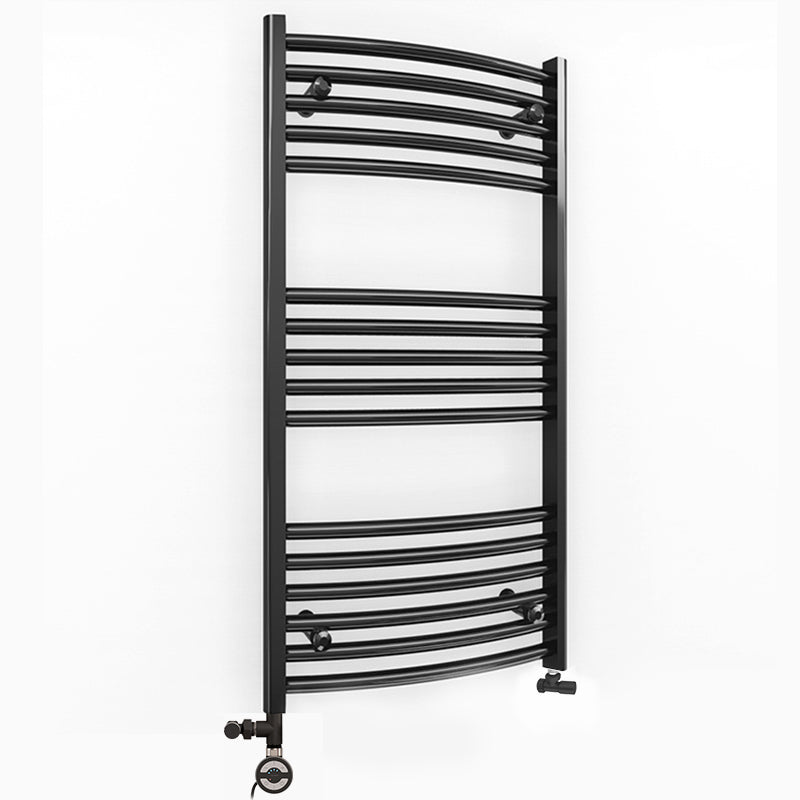

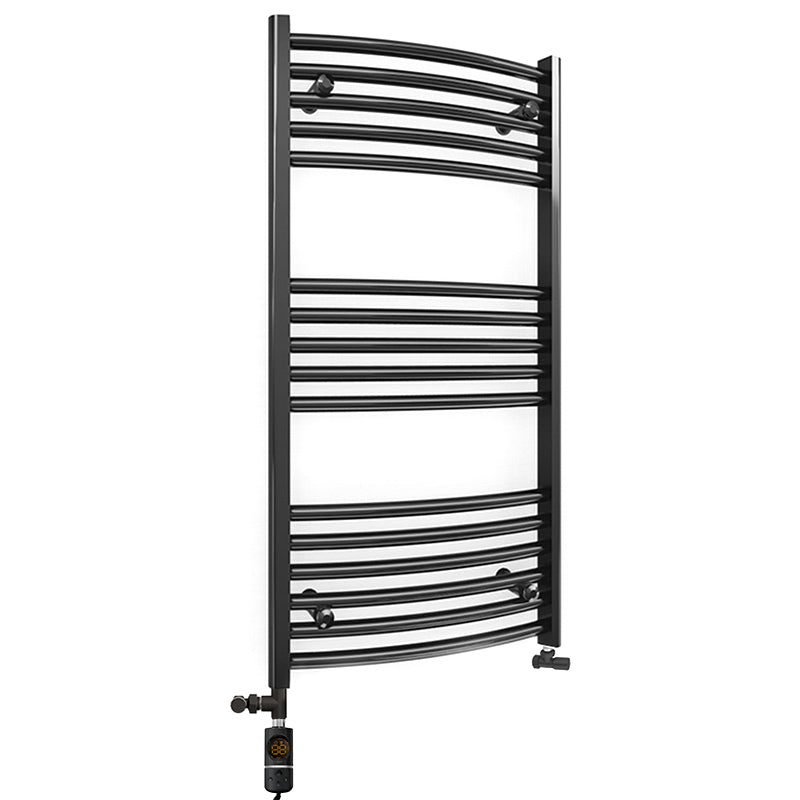

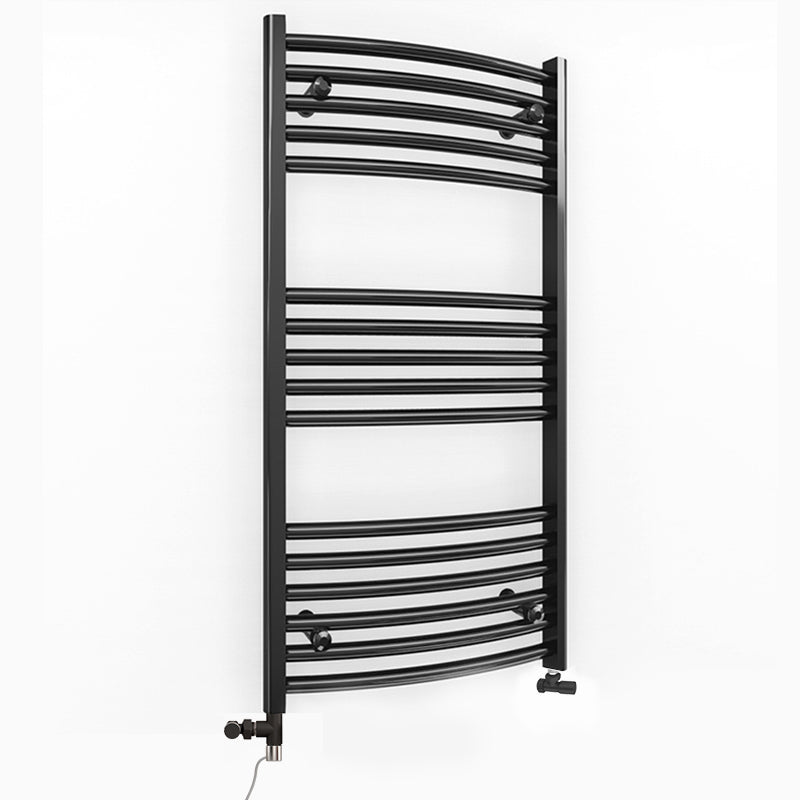

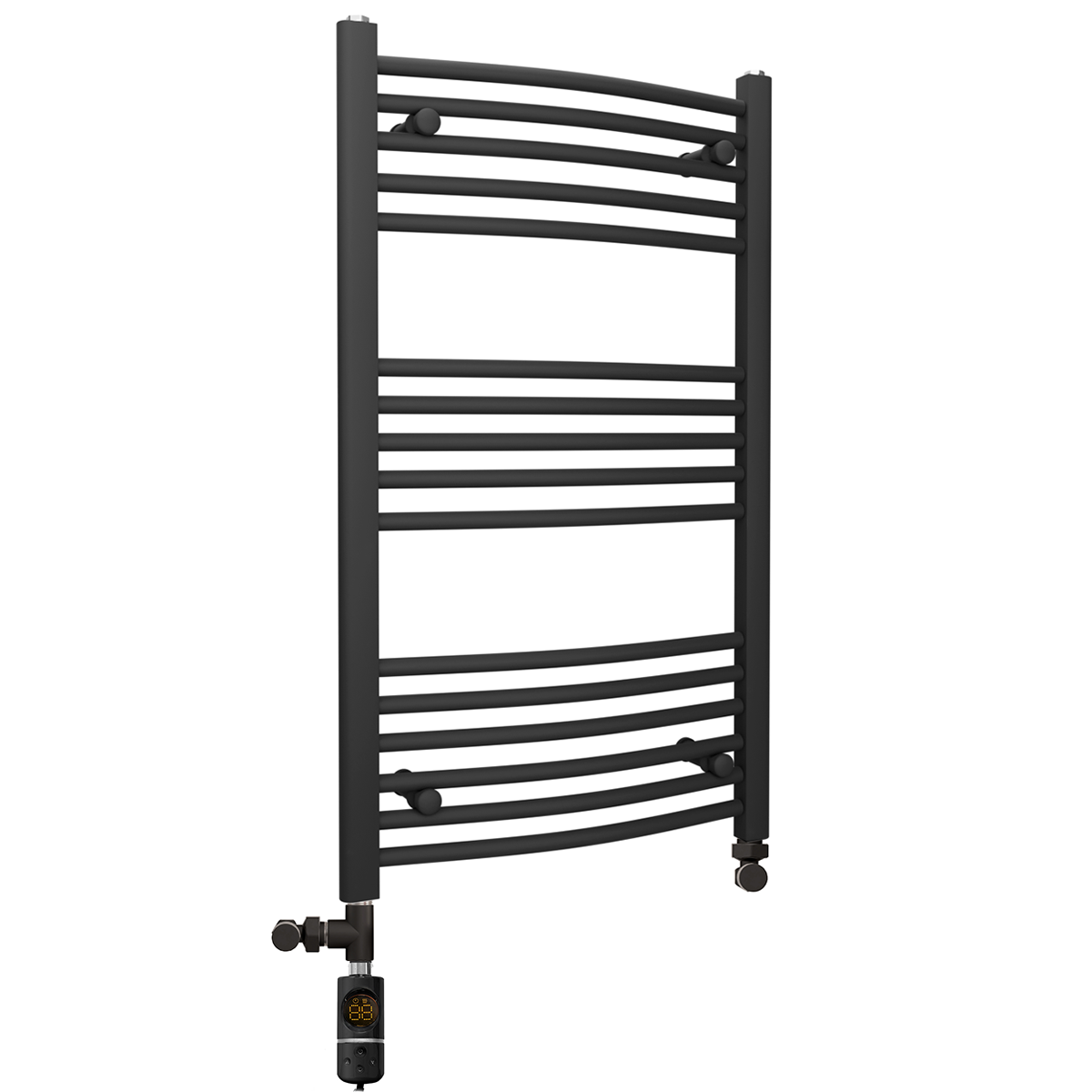

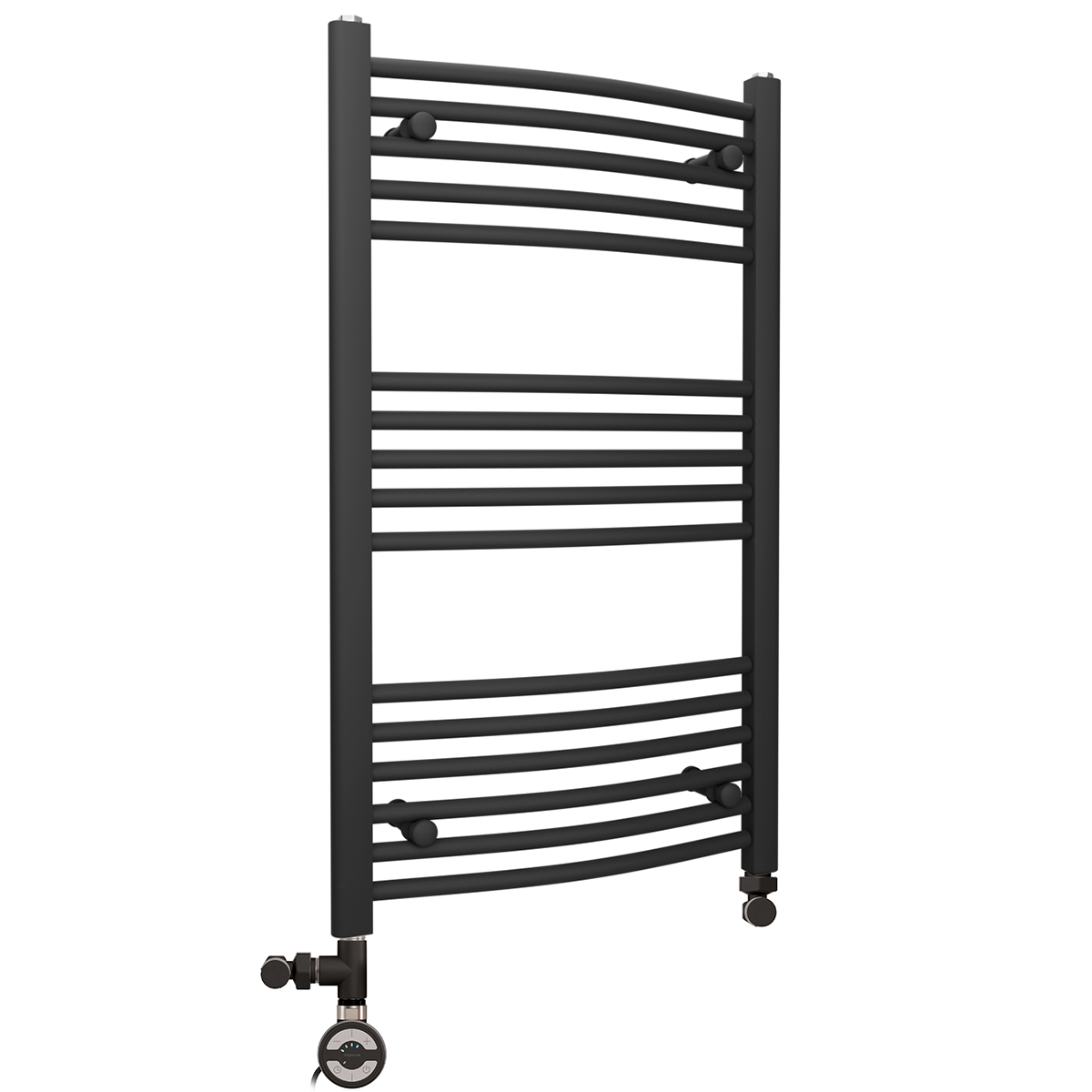

400mm x 900mm Dual Fuel Small Curved Matt Black Heated Towel Rail Radiator

Dual fuel curved towel rail radiator designed for mid height installations with balanced heat output and improved towel clearance. The curved profile enhances usability while maintaining a modern appearance.

Key Features

• Dual fuel operation: central heating and electric element
• Curved bar design for improved towel hanging space
• Even heat distribution across all bars
• Matt black finish for a modern, premium look
• Narrow width suitable for tighter wall spaces
• Practical height for everyday use
• Wall-mounted design for efficient space utilisation
• Suitable for bathroom, ensuite, cloakroom, and utility room

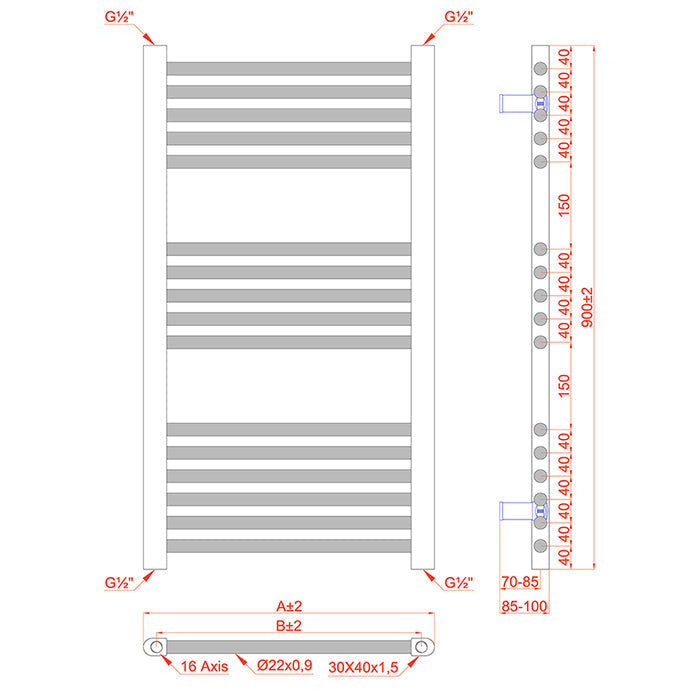

Dimensions

• Width: 400mm
• Height: 900mm
• Tube diameter: 22mm
• Wall to pipe centres: 75 to 95mm
• Projection from wall: 90 to 110mm

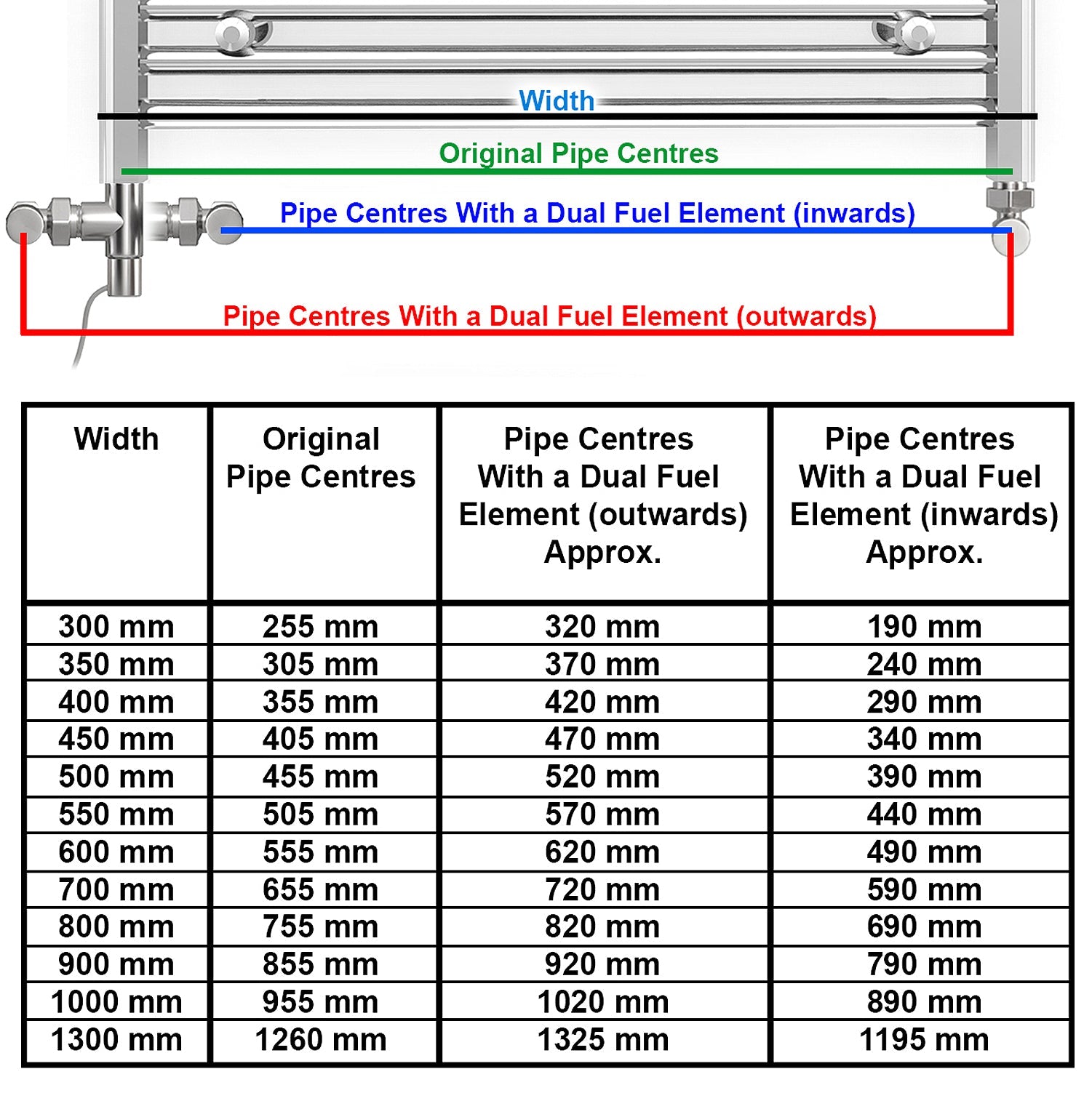

Pipe Centres (Approx.)

• 355mm standard
• 420mm with element fitted outward
• 290mm with element fitted inward

Heat Output

• 1109 BTU
• 325 Watts
  (Tested at Delta T50)

Construction

• Material: Steel
• Finish: Matt Black
• Design: Curved ladder
• Tube layout: 16 bars (5+5+6)

Installation and Use

• Compatible with central heating systems
• Can operate independently using the electric element
• Heating element can be installed on left or right side

Included

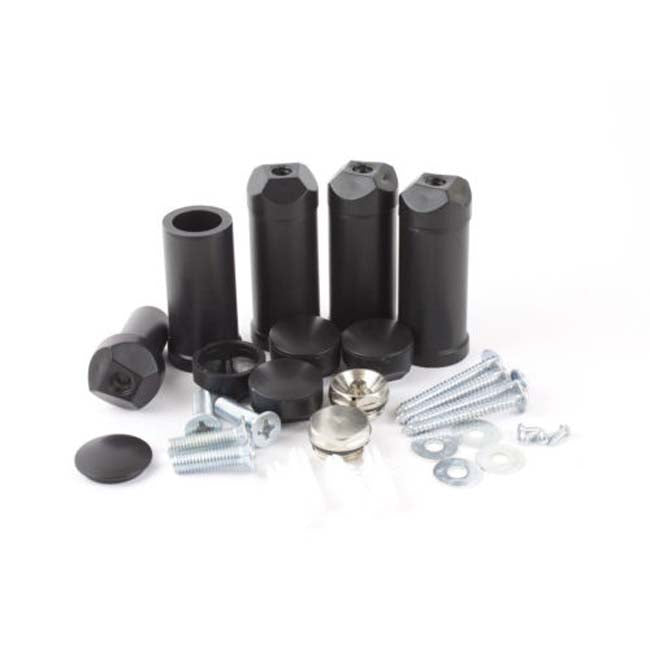

• 4 wall brackets
• 1 blanking plug
• 1 bleed valve

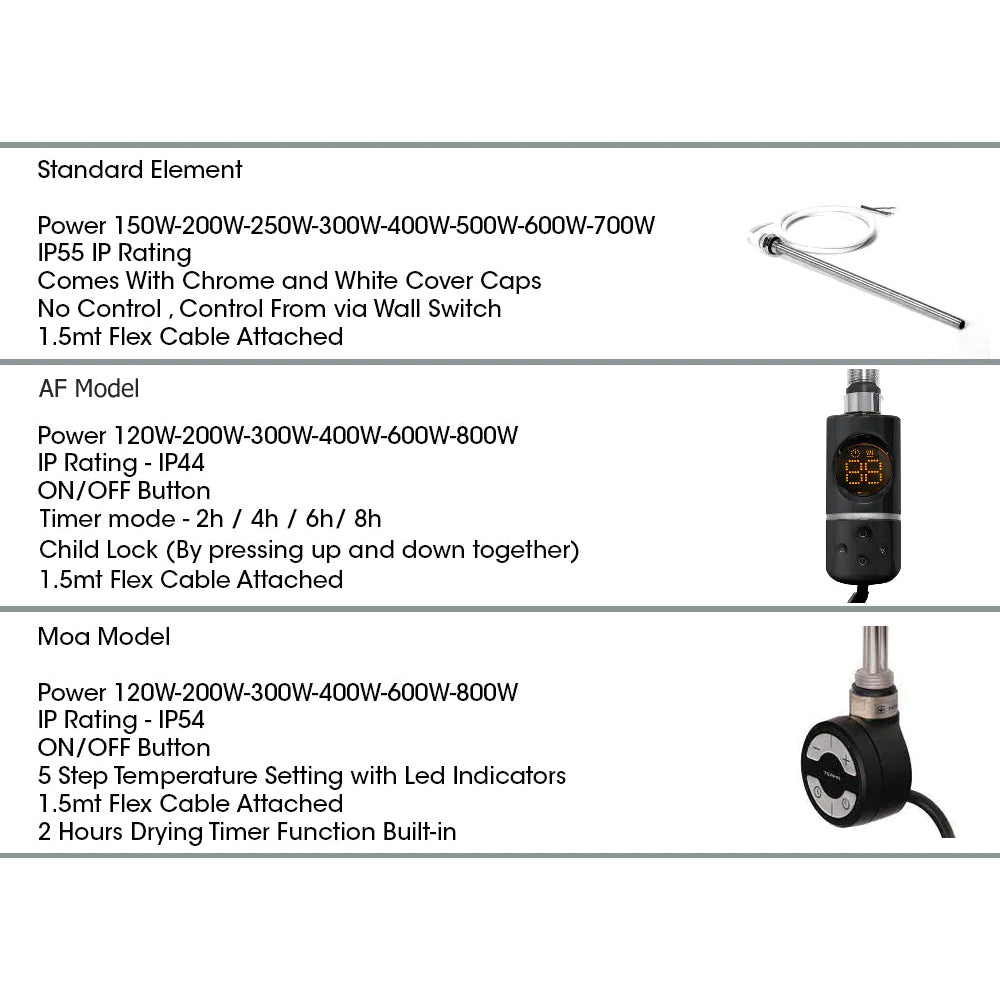

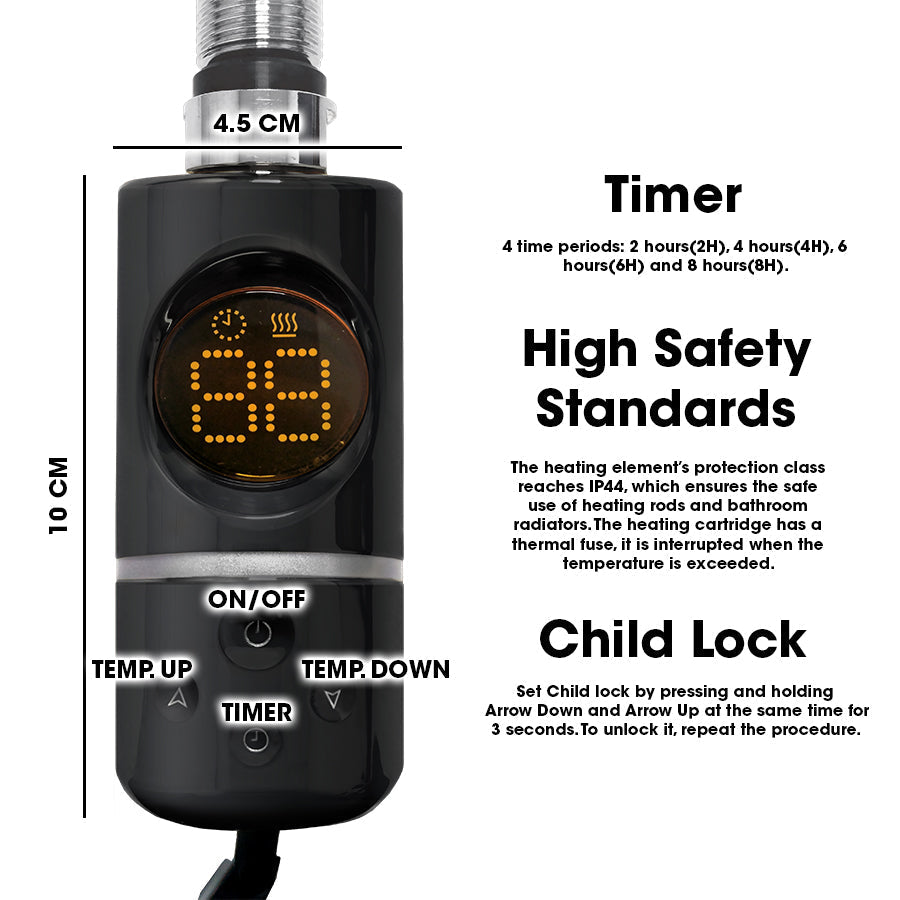

• 1 electric heating element

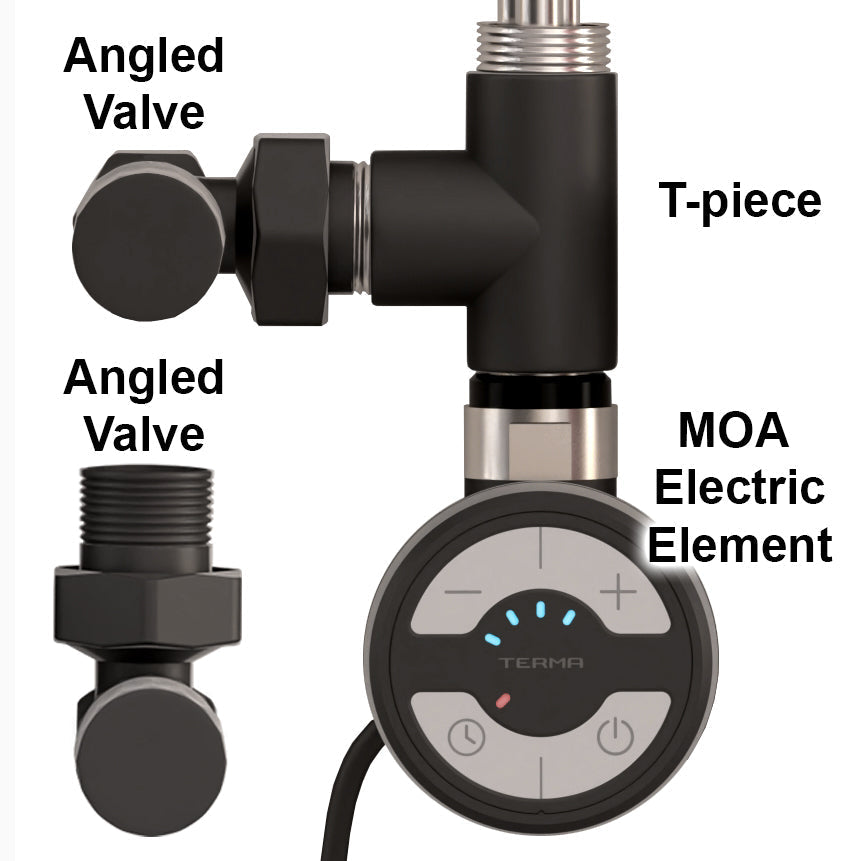

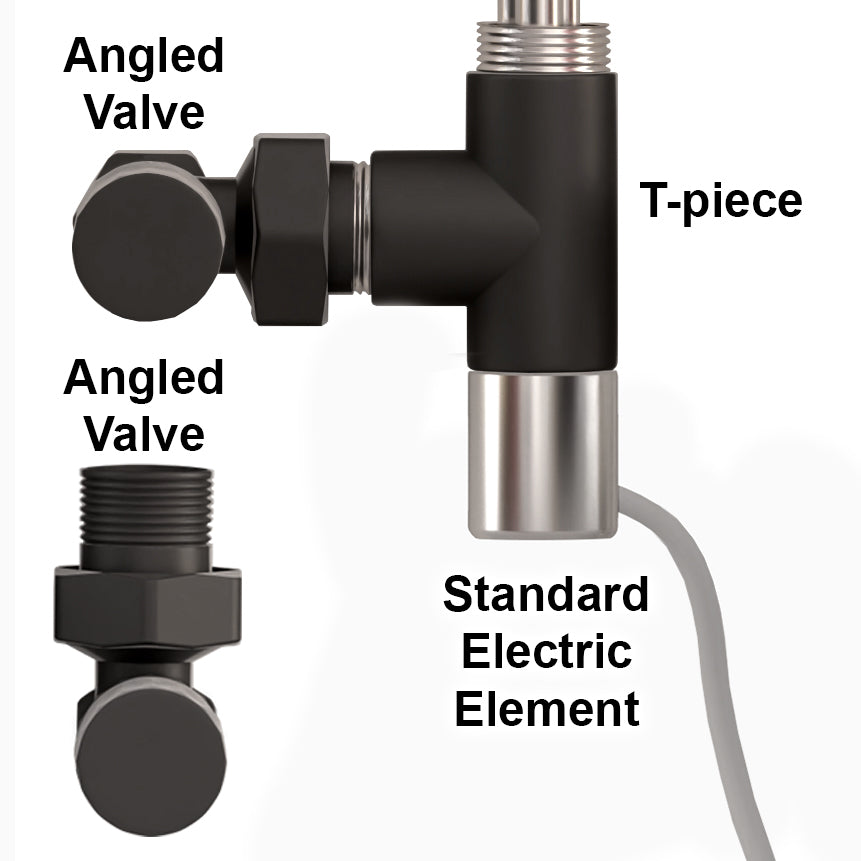

• 1 pair of angled valves
• 1 T-piece connector
• Installation instructions

Valve Information

• Angled valves are included as standard
• For pipework coming from the floor, straight valves may be required
• Leave a note at checkout or contact us if a different valve type is needed

Warranty

• 5 years on radiator
• 2 years on heating element

Notes

• Heat output based on Delta T50 standard
• Ensure installation complies with UK plumbing and electrical regulations
